1-3kVA Uninterruptible Power Supply(UPS) Single-phase Input &Single-phase Output

인증
중국 Tianjin Estel Electronic Science and Technology Co.,Ltd 인증
중국 Tianjin Estel Electronic Science and Technology Co.,Ltd 인증
고객 검토
지난 3년간, 우리의 협력은 매우 명랑합니다, 당신의 회사의 기술 지원과 환자 서비스에 감사합니다, 최종 사용자가 냉각과 야외 텔레콤 내각의 품질에 매우 만족합니다. 우리의 미래의 협력에 대한 최고 희망.

—— 앤서니

적시의 응답, 전문 기술, 혹독한 태도, 빠른 전달, 우리가 매우 충족합니다, 공조가 매우 매끄럽습니다.

—— 매니시

1개 샘플에서 45개 세트, 76개 세트, 200개 세트까지, 우리는 점진적으로 강한 신탁을 설립했습니다. 상자 품질은 좋고 설계가 합리적입니다.

—— 파마

에어컨은 1.5년간 운영했습니다. 효과적이어서 식는 것은 좋습니다. 잘 판매 후 서비스하고, 기술적 문제를 사용하고 해결하기 위해 끈기있게 지시합니다. 환경감시 시스템은 또한 잘 운영하고 있고 상자를 모니터링하는 원격이 매우 편리합니다.

—— 루이 앨버토

박스는 큽니다 우리 그것으로 행복합니다. 우리는 미래에 매월 30개 세트를 주문할 것입니다. 행복하게 협력하세요.

—— 안드레이 스리아친

항상 저희는 좋은 제안을 제공해서 좋 해결책, 우리는 아주 고맙게 여깁니다.

—— 넬슨

제가 지금 온라인 채팅 해요

1-3kVA Uninterruptible Power Supply(UPS) Single-phase Input &Single-phase Output

1-3kVA Uninterruptible Power Supply(UPS) Single-phase Input &Single-phase Output
1-3kVA Uninterruptible Power Supply(UPS) Single-phase Input &Single-phase Output 1-3kVA Uninterruptible Power Supply(UPS) Single-phase Input &Single-phase Output

큰 이미지 :  1-3kVA Uninterruptible Power Supply(UPS) Single-phase Input &Single-phase Output

제품 상세 정보:
원래 장소: Shenzhen, 중국 (본토)
브랜드 이름: ESTEL
인증: ISO9001, CE, 3C, FCC, TLC
모델 번호: 1-3kVA
결제 및 배송 조건:
최소 주문 수량: 1
가격: 358-2143 usd
포장 세부 사항: 상자/목재 케이스
배달 시간: 7-10 근무일
지불 조건: L/C, D/A, D/P, T/T, Western Union
공급 능력: 한 달에 20,000 세트
상세 제품 설명
입력 전압 범위: 50%부하:115-300VAC;100%부하:160-280VAC 입력 주파수 범위: 40Hz-70Hz
전력 계수: ≥0.99(100%부하) 전압 안정화 정확도: ± 1%
출력 전압: 208VAC @220VAC@230VAC@240VAC 출력 주파수: 50Hz±0.25Hz,60Hz±0.25Hz
강조하다:

1-3kVA UPS single-phase input

,

UPS single-phase output power supply

,

uninterruptible power supply with warranty

Uninterruptible Power Supply(UPS)



Product Overview

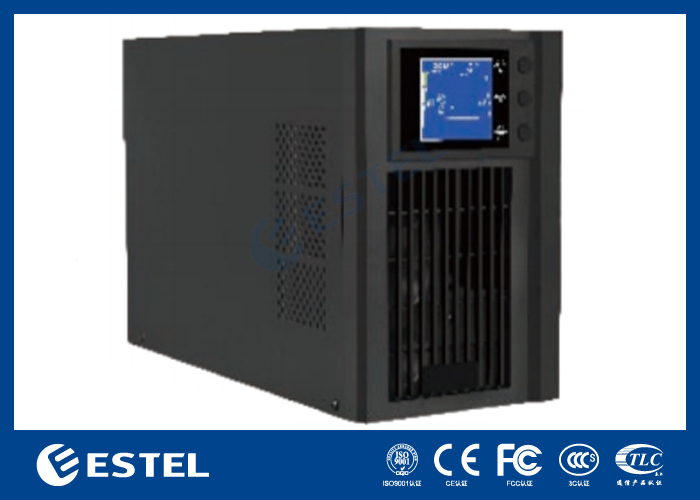

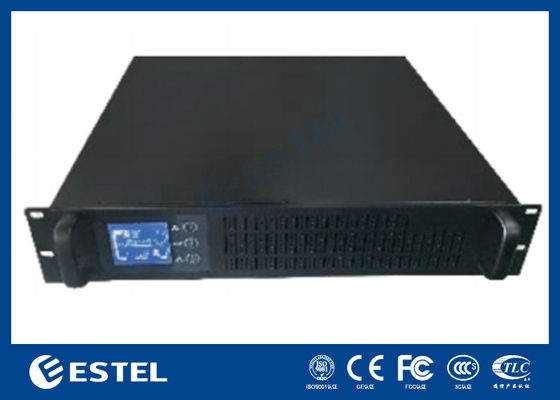

ESTEL 1-3kVA UPS series is specially designed for server applications in small and medium-sized enterprises.It supports rack installation mode and tower installation mode.Featuring an online double-conversion design and DSP digital technology,it delivers pure sine wave output with exceptional performance and a high-end appearance,it presents the perfect integration of cutting-edge technology and traditional products.



Product Features

  • Advanced DSP digital controltechnology,ensures more stable performance and superior quality;
  • Output power factoris 0.8, aligning with the evolving trends of power consuming equipment and providing stronger load capacity;
  • Active input powerfactor correction(PFC), achieving an input power factor of up to 0.98 or higher;
  • Wide input voltage range and frequency range, capable of adapting to areas with extremely harsh power conditions,including remote regions;
  • Compatible with generator;
  • Zero switching time, effectively ensuring the safety and reliability of load
UPS Capacity 1K 1KL 2K 2KL 3K 3KL
Rated Output Capacity 1kVA/0.8kW 2KVA/1.6kW 3KVA/2.4kW

AC Input

Input Voltage Range 50%load:115-300VAC;100%load:160-280VAC
Input Frequency Range 40Hz-70Hz
Power Factor ≥0.99(100%load)





Battery lnput

Battery Pack Voltage 24V 36V 48V 72V 72V 96V
Battery Mode Built-in External Built-in External Built-in External
Charging Voltage 27.4VDC 41.3VDC 54.7VDC 82.1VDC 82.1VDC 109.4VDC
Charging Current 1A 6A(max) 1A 6A(max) 1A 6A(max)
Battery Charging Time Built-in batteries:5hrs to 90%;External batteries:depends on battery pack capacity











AC Output

Voltage Stabilization Accuracy ±1%
Output Voltage 208VAC @220VAC@230VAC@240VAC
Output Frequency 50Hz±0.25Hz,60Hz±0.25Hz
Waveform Linear load:Sine wave,THD<3%;Non-linear load:Sine wave,THD<8%;
Output Power Factor 0.8
Overload Capability AC Mode 100%-110%:10min;110%-130%:1min;>130%:1sec
Battery Mode 100%-110%:30sec;110%-130%:10sec;>130%:1sec
Output Current Peak Coeficient 3:1
Inverter Bypass 4ms(Typical)
Mains and battery switch time 0ms
Efficiency AC Mode 88% 89% 90%
Battery Mode 83% 87% 88%
Communication and Monitoring

RS232(can convert to RS485);Smart card slot(can expand with multiple

monitoring modes,via SNMP,mobile phone text message,etc.)

Tower Type Weight (kg) 8 4.5 16.5 6.8 28 11.5
Size(D×W×H)(mm) 280×145×225 400×145×225 433×190×318



Rack Type

Weight(kg) 10.5 7 18 8 24.5 8.7

Weight

(kg)

External battery type 420×440×85 420×440×85 420×440×85
Built-in battery type 420×440×85 590×440×85 590×440×85
