| CPU: | CPU: Xtensa 듀얼 코어 32비트 LX6 마이크로프로세서, 클럭 속도 240MHz | AI/DI 입력: | 2 도로 AI 전압 유형; |
|---|---|---|---|
| 저장: | 저장 공간: 448KB ROM 520SRAM | 스마트 커넥트 입: | 2 도로 RS485 직렬 입 |
| DC12V는 출력했습니다: | 1 도로 12V±10% 제어 가능한 출력 | 와이파이(선택사항): | WiFi 통신을 지원합니다. |
| 강조하다: | Intelligent FSU environmental monitoring unit,DTU200EG telecom power system,Environmental monitoring unit with warranty |
||
Introduction
The DTU200EG is a device designed for monitoring systems and general data acquisition . It is mainly used to collect various environmental and dynamic variables, alarm signals, etc. It can realize data acquisition, output control, remote communication and other functions, and integrate all functions into one platform.
Powered by an external power source (AC/DC) It can provide 2-channel general analog measurement ( AI) or 2-channel digital input (DI), 2-channel It features an RS485 serial port, one 12V output, and one Ethernet port.
This monitoring subsystem directly collects and processes data from devices and sensors within the micro-station. Data is uploaded to the monitoring center via wireless communication or Ethernet . The DTU200EG supports backup battery functionality after a power outage. It is designed for low-power, low-cost, low-data-traffic deployment scenarios.
Product Features
220V AC (176V) ~264 V) / DC 240V DC (165V) ~288V) / DC-48VDC (-36V ~ -72V) It is powered by a specific voltage and has the function of measuring and judging AC/DC.
It supports 4G communication module, Ethernet port communication, and local Wi-Fi connection.
Supports GPS positioning function;
Multiple RS485 serial ports It can be connected to switching power supplies, air conditioners, Smart protocols such as Battery Management System (BMS);
Supports backup battery power ;
Local or remote upgrades and maintenance;
The product casing is of moderate size and easy to install. Guide rail installation;
Low cost, low power consumption, low data traffic, and suitable for large-scale deployment and installation;
All functions meet the relevant technical requirements of current mainstream operators;
Technical Parameters
| Name | Way | Remark |
| CPU/Storage | CPU: Xtensa Dual-core 32 Bit LX6 microprocessor , clock speed 240MHz. Storage: 448KB ROM 520SRAM | |
|
AI/DI enter |
2 |
2 road AI Voltage type; AI Measurement accuracy: From 30% to full scale, the measurement error is ≤5mV; at 30% of the scale and above, the measurement error of the voltage signal acquisition value is ≤0.2%; DI Measurement accuracy: 100% ; |
|
Smart Connect mouth |
2 |
2 road RS485 Serial mouth; All serial ports can be configured with parameters such as speed, communication bit width, and checksum. The working mode can be configured as transparent mode or bottom-end protocol parsing mode, and the packet loss rate is 0. |
| DC12V Output | 1 | 1 road 12V±10% controllable output; total power ≥1.2W; |
| Backup battery (optional) | 1 | The backup battery has a built-in charge and discharge management function, and will report a power failure alarm signal within a specified time when the battery capacity meets the requirements. |
| Ethernet mouth | 1 | Comes with 1 The network port supports local network port debugging functions; |
| SMA catch mouth | 1 | 1 Road communication antenna connection mouth; |
| Communication module (optional) | 1 | Supports all network types 2/3/4G Communication module or 4G CAT1 Communication module; |

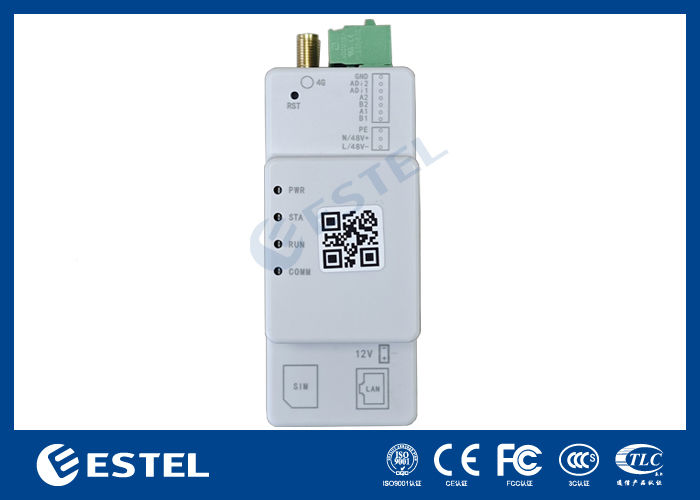

| Indicator lights | 4 | 4 There are several general indicator lights, including an external power indicator, a status indicator , a running indicator , and a communication indicator. |
| WIFI (optional) | Support WiFi communication; | |
|
Power supply |
1 |
Supports voltage measurement and automatic AC/DC detection; Power supply parameters: AC type 220V AC (176 V~264 V); DC 240V DC (165V~288V ); DC type -48VDC (-36V~-72V ); |
| Size and Installation Method | long 88.2mm, width 37.5mm, height 69.4mm. 35mm Standard guide rail installation. | |
| Environmental adaptability |
Storage temperature: -40～70℃ Operating temperature: -20～60℃ |
|
| Protection level | IP20 | |
| Lightning protection | Power supply Mouth: Differential mode 3KA, common mode 3KA; Differential mode for other ports 2KA, common mode 3KA | |
| Power consumption | The standby power consumption of the whole machine is ≤2W (when the backup battery is not charged). | |
