Outdoor Telecom Power System with 48VDC Power Rectifier and Inverter

Outdoor Telecom Power System with 48VDC Power Rectifier and Inverter
Outdoor Telecom Power System with 48VDC Power Rectifier and Inverter Outdoor Telecom Power System with 48VDC Power Rectifier and Inverter Outdoor Telecom Power System with 48VDC Power Rectifier and Inverter Outdoor Telecom Power System with 48VDC Power Rectifier and Inverter Outdoor Telecom Power System with 48VDC Power Rectifier and Inverter

큰 이미지 :  Outdoor Telecom Power System with 48VDC Power Rectifier and Inverter

제품 상세 정보:
원래 장소: 중국
브랜드 이름: ESTEL
인증: CE UL FCC
모델 번호: ET6085120-EQ-2D
결제 및 배송 조건:
최소 주문 수량: 1 세트
가격: 715-4286 usd
포장 세부 사항: 나무 케이스
배달 시간: 15-30 일
지불 조건: T/T, Western Union, MoneyGram, D/P, D/A, L/C.
공급 능력: 한 달에 3000 세트
상세 제품 설명
캐비닛 치수: WxDxH=600x850x1200mm(사용자 정의 가능) 내부 공간: 19'' 표준 랙
재료: 아연 도금 시트 냉각 방식: 팬 시스템
문: 앞문 1개, 뒷문 1개 전력 끊기: -48VDC, 220VAC/110VAC
IP 등급: IP55 포장: 나무 케이스
강조하다:

outdoor telecom power system 48VDC

,

telecom power rectifier with inverter

,

48VDC power system for telecom



Outdoor Telecom Power System with 48VDC Power Rectifier and Inverter



1. Introduction

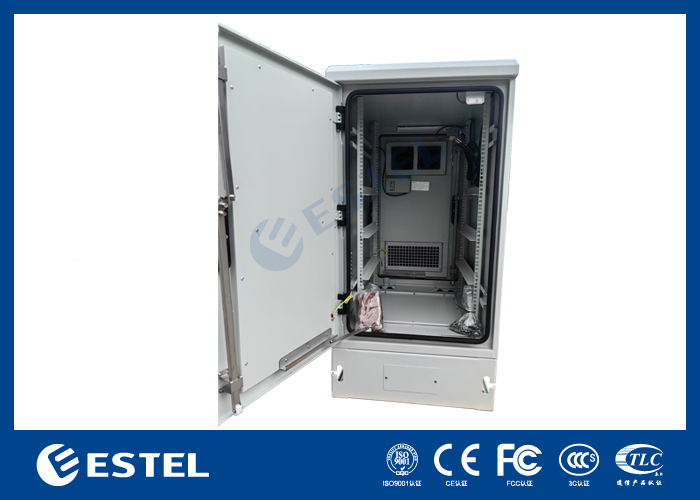

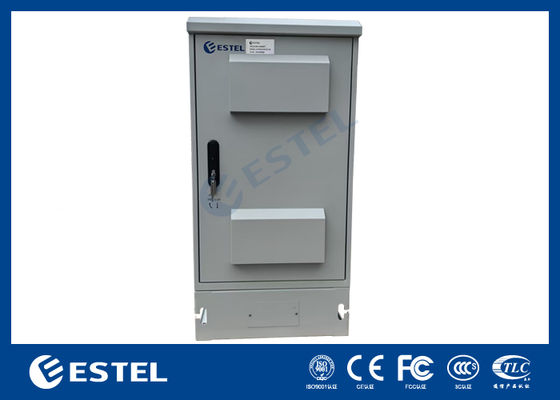

ET6085120-EQ-2D is an outdoor cabinet which can protect customer’s equipment from damage and extreme weather conditions, it provides stable and high-quality DC and AC power supply for telecom IT equipment. The cabinet is an ideal solution for physical connections of outdoor telecommunication equipment which need both DC and AC power supply.



2. Applications



This outdoor telecom cabinet is widely used in telecom operators’ mobile telecommunication sites, outdoor small shelters, railway electrical control cabinets, electronic police, communication base stations, outdoor air detection stations, solar control cabinets,etc.



3. Cabinet Features



  • High protection grade: IP55
  • Strong anti-theft ability, embedded door, inner hinges, three-point lock, supporting additional padlock
  • Cooling system is installed on cabinet door, convenient for maintenance, cleaning and replacement
  • Support remote management, improve security and minimize customer’s operation cost



3. Rectifier Power System Features



  • Power system capacity: 9-24kW, 3-6 rectifier modules + 1 monitoring module;
  • Power system height: 6 rack units;
  • Rectifier module specification: 4kW
  • Monitoring module: support SNMP;

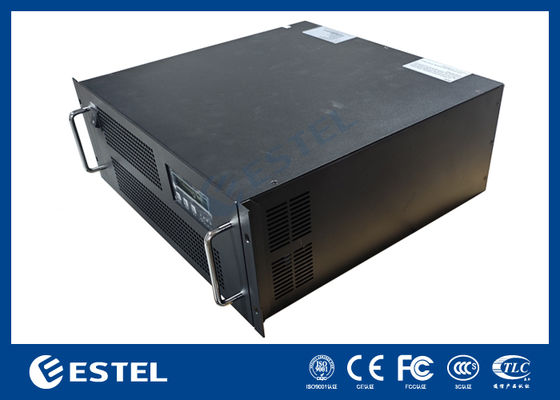

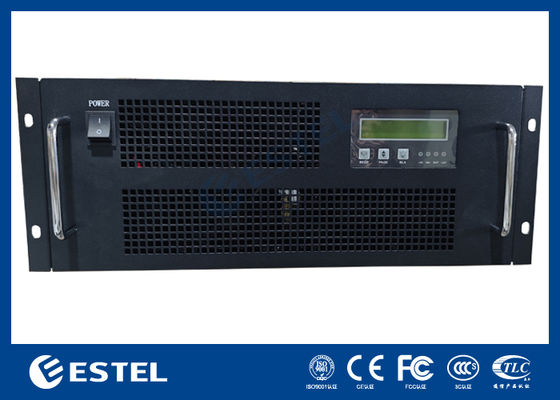

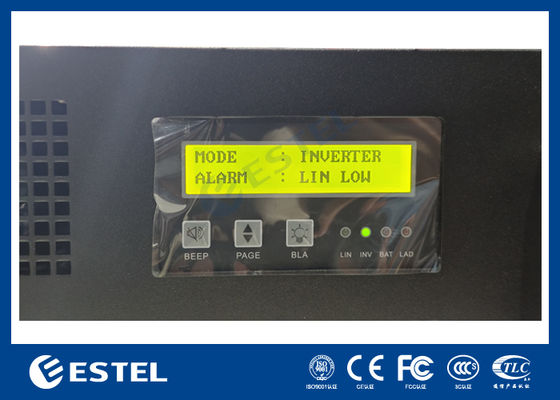

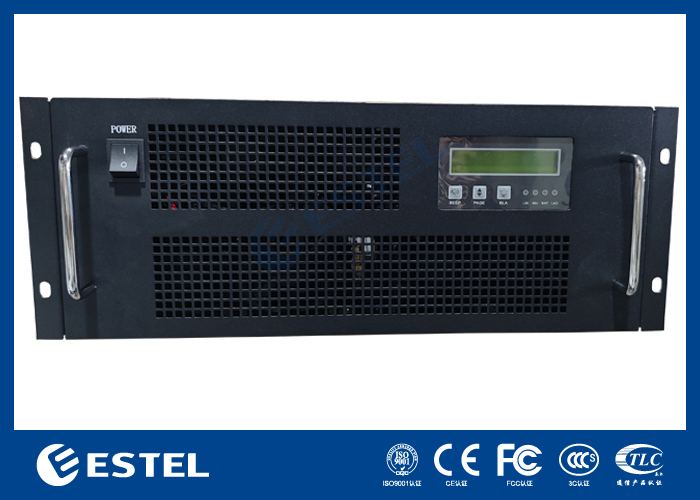

  • Inverter for AC power output (for maintenance socket, etc.)



4. Cooling System Features



Door-mounted air conditioner or fans, based on client's equipment heat dissipation power and budget.



5. Technical Parameters



Configuration Item Technical Parameter
Cabinet Model ET6085120-EQ-2D (9-24kW)
Protection Level IP55
External Dimension H 1200 mm×W 600 mm×D 850 m (Can be customized)
Internal Dimension 19 inch
Material Galvanized steel, 1.2 mm thickness, single wall.
Thickness of bearing parts: 2.0 mm
Insulation 20mm PEF
Coating Polyester powder coating
Color RAL7035
Lock Anti-theft three-point locking system
Hinge Inner hinge
Installation Options Floor mounted
Cable Routing Cable in and out from the bottom of cabinet
Maintenance One front door and one rear door
Cooling System Air conditioner Optional
Fan 2pcs fan with one fan controller
Input Voltage AC220V 60Hz
Door sensor Door sensor One door sensor on each door
Temper sensor Temper sensor Optional
Rectifier system Rectifier system 9-24kW, 19" rack mount
3kW rectifier modules
1x Monitoring Controller Module, SNMP communication port
Power distribution:
LLVD: 3x 63A/1P, 2x 40A/1P, 4x 32A/1P
BLVD: 2x16A/1P, 2x 10A/1P, 4x 6A/1P
LED Lamp LED lamp for illumination with switch, Voltage: AC220V, 60Hz.
Environment Working Temperature -40℃ ~+55℃ (+Solar Radiation)
Storage Temperature -40℃~+70℃
Working Humidity 5%~95%(No condensation)
Working Altitude 0~4000 meters
