제품 상세 정보:
결제 및 배송 조건:
|
| 캐비닛 치수: | WxDxH=750x750x1000mm(사용자 정의 가능) | 내부 공간: | 19'' 표준 랙, 16U 공간 |
|---|---|---|---|
| 재료: | 아연 도금 시트 | 전력 용량: | 12kw |
| 정류기 모듈: | 3개 4kW | 냉각 방법: | 에어컨 또는 강제 팬 시스템 |
| IP 등급: | IP65 | 포장: | 나무 케이스 |
| 강조하다: | 12kW telecom power system,telecom power system with smart circuit breakers,intelligent control telecom power system |
||
12kW Telecom Power System with Smart Circuit breakers for Intelligent Control
1. Introduction

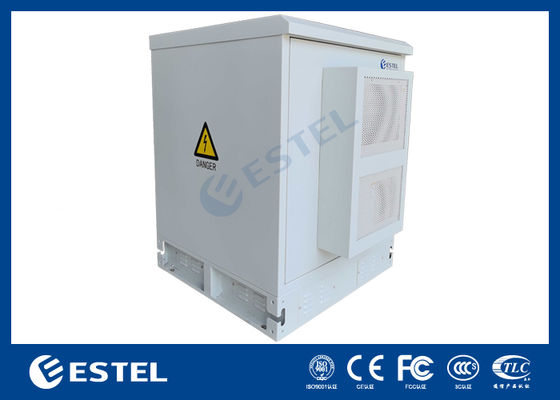

ET7575100A-16U-12kW is an outdoor cabinet which can protect customer’s equipment from damage and extreme weather conditions, it provides stable and high-quality DC power supply for telecom IT equipment. The cabinet is an ideal solution for physical connections of outdoor telecommunication equipment which need DC power supply.
2. Applications
This outdoor telecom cabinet is widely used in telecom operators’ mobile telecommunication sites, outdoor small shelters, railway electrical control cabinets, electronic police, communication base stations, outdoor air detection stations, solar control cabinets,etc.
3. Cabinet Features
3. Rectifier Power System Features
- LLVD: 3x 63A/1P, 2x 40A/1P, 4x 32A/1P;
- BLVD: 2x16A/1P, 2x 10A/1P, 4x 6A/1P;
4. Cooling System Features

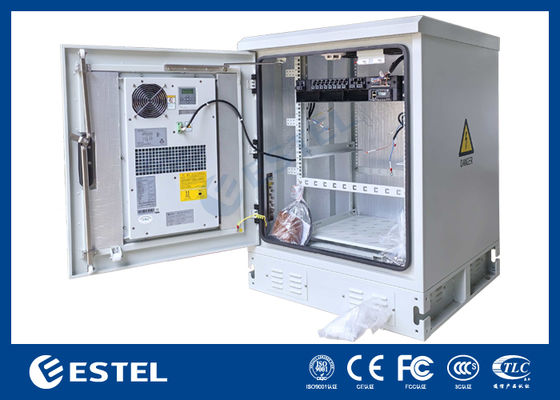

Door-mounted air conditioner or fans, based on client's equipment heat dissipation power and budget.
5. Technical Parameters
| Configuration | Item | Technical Parameter |
| Cabinet | Model | ET7575100A-16U-12kW |
| Protection Level | IP65 | |
| External Dimension | H 1000 mm×W 750 mm×D 750 m (Can be customized) | |
| Internal Dimension | 19 inch 16U | |
| Material | Galvanized steel, 1.2 mm thickness, single wall. | |
| Thickness of bearing parts: 2.0 mm | ||
| Insulation | 20mm PEF | |
| Coating | Polyester powder coating | |
| Color | RAL7035 | |
| Lock | Anti-theft three-point locking system | |
| Hinge | Inner hinge | |
| Installation Options | Floor mounted | |
| Cable Routing | Cable in and out from the bottom of cabinet | |
| Maintenance | One front door and one rear door | |
| Cooling System | Air conditioner | 1000W |
| Fan | Optional | |
| Input Voltage | AC220V 60Hz | |
| Door sensor | Door sensor | Optional |
| Temper sensor | Temper sensor | Optional |

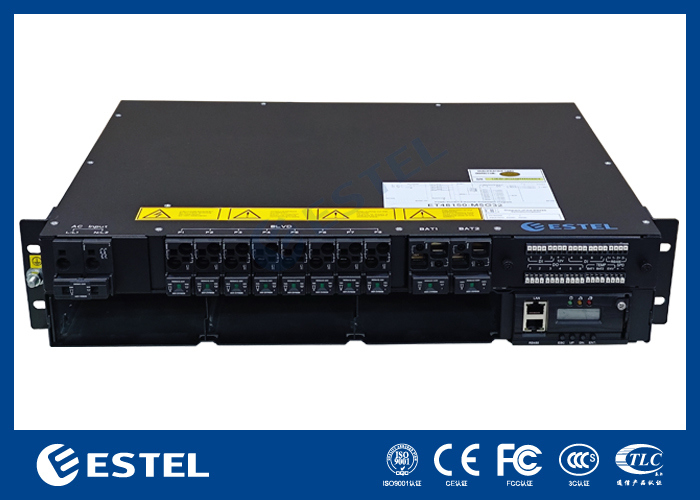

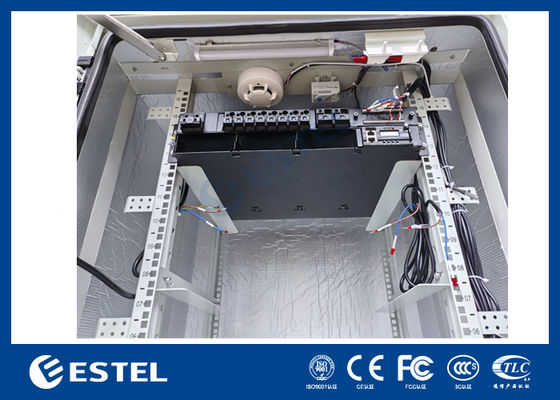

| Rectifier system | Rectifier system | 12kW, 19" rack mount, 2U Rectifier System: |
| 3pcs 4kW rectifier modules | ||
| 1x Monitoring Controller Module, SNMP communication port | ||
| Power distribution: | ||
| LLVD: 3x 63A/1P, 2x 40A/1P, 4x 32A/1P | ||
| BLVD: 2x16A/1P, 2x 10A/1P, 4x 6A/1P | ||
| LED Lamp | LED lamp for illumination with switch, Voltage: AC220V, 60Hz. | |
| Environment | Working Temperature | -40℃ ~+55℃ (+Solar Radiation) |
| Storage Temperature | -40℃~+70℃ | |
| Working Humidity | 5%~95%(No condensation) | |
| Working Altitude | 0~4000 meters | |
