| 차원: | 482.0(W)*350.0(D)*5U(H) | 무게: | ≤25kg(정류기 제외) |
|---|---|---|---|
| 냉각 모드: | 자연 냉각 | 설치 모드: | 19 인치 랙 또는 캐비닛 내부에 설치됩니다 |
| 배선 방식: | 상단 입구 및 상단 콘센트 | 유지 관리 모드: | 전면 유지 보수, 지원 모듈 등급 변경 |
| 강조하다: | Embedded Power System telecom,ET48300-005 power supply,Telecom Power System with warranty |
||

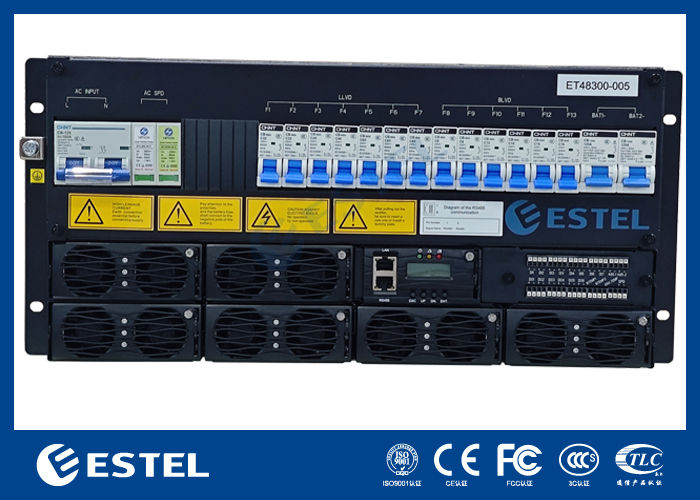

| Type | ET48300-005 | |||
| System | Dimension | 482.0(W)*350.0(D)*5U(H) | ||
| Weight | ≤25kg (without rectifiers) | |||
| Cooling mode | Natural cooling | |||
| Installation mode | Installed on 19-inch rack or inside the cabinet | |||
| Cabling mode | Top inlet and top outlet | |||
| Maintenance mode | Front maintenance, support module grade change | |||
| Protection level | IP20 | |||
| AC Distribution |
Input mode | 380VAC three-phase | ||
| Input capacity | 1×63A/4P | |||
| Input frequency | 45~65Hz, rated value: 50Hz/60Hz | |||
| AC SPD | 20kA/40kA, 8/20μs | |||
| DC Distribution |
Output voltage | -43~-58VDC, rated value: -53.5VDC | ||
| Maximum capacity | 18kW | |||
| Battery breakers | 2× 125A/1P | |||
| Load breakers | LLVD:32A/1P×2+40A/1P×2+63A/1P×3 BLVD:6A/1P×2+10A/1P×2+16A/1P×2 |
|||
| DC SPD | 10kA/, 8/20μs | |||
| Rectifier | Input voltage | 85VAC～300VAC, rated 220VAC | ||
| Efficiency | >96% | |||
| Rated power | 3000W(176~300VAC) | |||
| Working temperature | -40℃~+75℃(fully output below 50℃) | |||
| Dimension | 106.5mm(W)×286mm(D)×41.5mm(1U/H) | |||
| Weight | ≤2kg | |||
| Cooling mode | Forced cooling | |||
| Power factor | ≥0.99 | |||
| THD | ≤5% | |||
| Controller | Signal input | 4 AI(3 Battery temp., 1 ambient temp) ,7 DI(SPD, 6 common DI) | ||
| Alarm output | 6 dry contact | |||
| Communication port | RS485, SNMP | |||
| Display mode | LCD | |||
| Environment | Operating temperature |
-40℃~+75℃(fully output below 50℃) | ||
| Storage temperature | -40℃~+70℃ | |||
| Operating humidity | 5%~95%(non-condensing) | |||
| Altitude | 0~3000m(If the altitude is within the range of 2000m to 3000m, the maximum operating temperature decreases by 1℃ as the altitude increases by 200m.) |
|||
