제품 상세 정보:
결제 및 배송 조건:
|
| 제품 유형: | 서지 보호 장치 | 모델: | POE-MH |
|---|---|---|---|
| 최대 전송률: | 1000Mbps | 삽입 손실: | ≤0.5dB |
| 정격 전압: | 48VDC | 정격 작동 전류: | 2A, 4A(8선 전원 공급 장치) |
| 최대 작동 전압: | 60VDC | 인터페이스: | RJ45 |
| 난연 등급: | UL94V-0 | 차원: | 87mm×50mm×35mm |
| 강조하다: | RJ45 POE surge protector,1000Mbps lightning protector,in-line network surge arrestor |
||

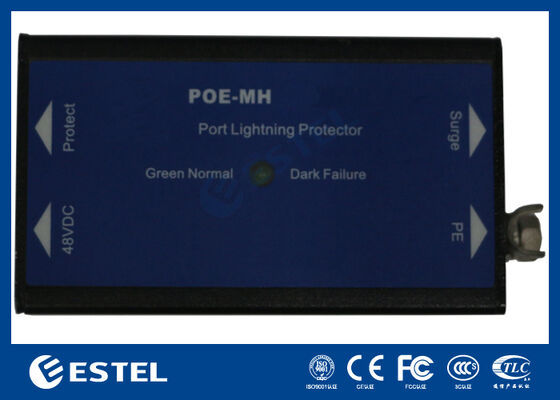

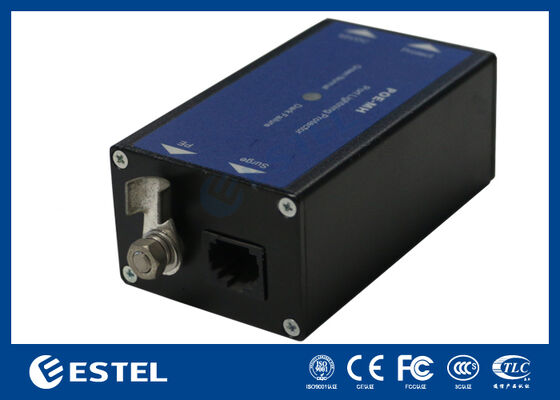

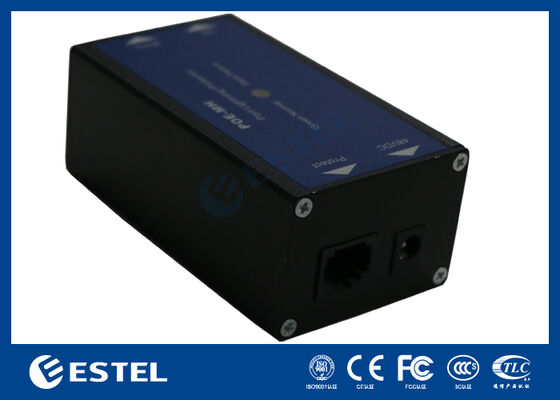

Network RJ45 1000M POE Surge Arrestor
This Power over Ethernet (PoE) Surge Protector is an essential safeguard for modern, power-over-data-line network infrastructure. It provides robust defense for critical connected devices—such as outdoor wireless access points, bridges, and security cameras—where the Ethernet cable itself becomes a potential pathway for damaging electrical surges.
Engineered for integration into a structured lightning protection system, it is typically installed at the building entry point, acting as a protective boundary between external and internal network zones. Its core function is to intercept and safely dissipate high-energy transients induced by lightning strikes and industrial interference before they can reach and destroy sensitive electronics.
The protector features a sophisticated two-stage defense mechanism. The primary stage handles extreme surge currents with rapid clamping, while a secondary stage offers precise voltage limitation and noise filtration, ensuring both equipment safety and signal integrity. This makes it indispensable for maintaining network reliability in telecommunications, industrial automation, smart transportation, and security applications where uptime is critical.
Key Features:
Max Transfer Rate: 1000Mbps
Insertion Loss: ≤0.5dB
Model: POE-MH
Interface Type: RJ45
Retardant Rating: UL94V-0
Dimensions: 87mm × 50mm × 35mm
Electrical Specifications:
Outdoor Wireless AP Surge Protection
IP Camera Lightning Surge Arrester
Wireless Bridge Surge Protector
Industrial Ethernet Surge Protection
PoE Switch Surge Suppressor
CCTV System Lightning Protection
Network Equipment Overvoltage Protection
| Product Type | Surge Protection Device |
| Model | POE-MH |
| Max Transfer Rate | 1000Mbps |
| Insertion Loss | ≤0.5dB |
| Ralated Opetional Voltage | 48VDC |
| Ralated Opetional Current | 2A, 4A(8-wire power supply) |
| Maximum Opetional Voltage | 60VDC |
| Maximum Output Current | 40A |
| Interface | RJ45 |
| Retardant Rating | UL94V-0 |
| Dimension | 87mm×50mm×35mm |
