| 외형 치수(H × W × D): | 1400mm×750mm×750mm | 구조: | 더블 레이어 디자인 |
|---|---|---|---|
| 외층 물질: | 1.2mm 아연도금강판 | 내부 공간: | 19인치 랙, 25U |
| 내부 층 재료: | 0.8mm 아연도금강판 | 잠금 시스템: | 절도 방지 3 포인트 잠금 장치 |
| IP 수준: | IP65 | 내부 조명: | 220VAC, 50Hz LED 램프 |
| 강조하다: | Rugged IP65 outdoor telecom cabinet,Double layer thermal insulation cabinet,Scalable deployment telecom power system |
||

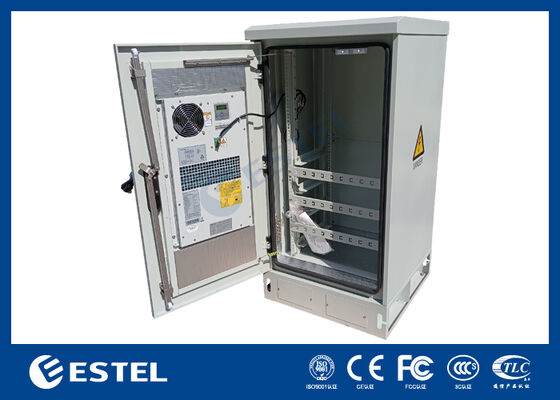

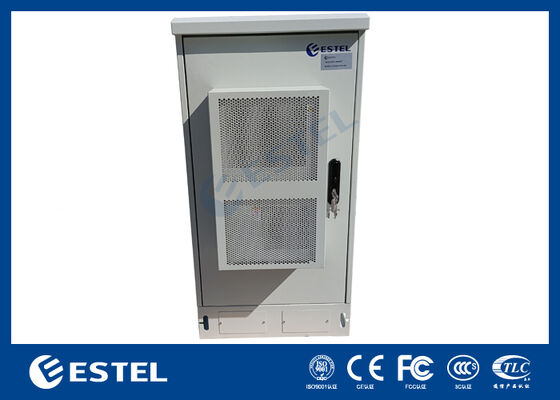

Rugged IP65 Double Layer Outdoor Cabinet with Thermal Insulation for Scalable Deployment
This IP65-rated outdoor cabinet is designed for mission-critical deployments in harsh environments. Featuring a robust double-layer construction with integrated 20mm PEF insulation, it provides excellent protection against dust, water, and temperature fluctuations. The cabinet supports 25U of standard 19-inch equipment and is suitable for telecommunications, edge computing, power distribution, and industrial automation applications.
IP65 High Protection: Fully sealed against dust and water jets, ideal for outdoor or dusty industrial environments.
Durable Double-Wall Construction: 1.2mm outer and 0.8mm inner galvanized steel with 2.0mm load-bearing parts for maximum structural integrity.
Thermal Insulation: 20mm PEF foam reduces heat transfer and minimizes condensation.
Flexible Installation: Can be floor-mounted or roof-mounted to suit different site conditions.
Active Cooling Ready: Optional 1500W air conditioner ensures optimal operating temperatures for heat-sensitive electronics.
Security & Convenience: Three-point locking system, concealed inner hinges, front-only maintenance access, and built-in LED lamp for nighttime servicing.
Additional: Internal Lighting--220 VAC, 50 Hz LED lamp
| Parameter | Specification |
| External Dimensions (H × W × D) | 1400mm×750mm×750mm(Customizable) |
| Internal Space | 19-inch rack, 25U |
| Protection Level | IP65 |
| Parameter | Specification |
| Structure | Double-layer design |
| Outer Layer Material | 1.2 mm galvanized steel plate |
| Inner Layer Material | 0.8 mm galvanized steel plate |
| Load-Bearing Components | 2.0 mm thickness |
| Insulation | 20 mm PEF (Polyethylene Foam) |
| Coating | Polyester powder coating |
| Color | RAL 7035 (Light gray) |
| Feature | Specification |
| Locking System | Anti-theft three-point locking system |
| Hinge Type | Inner hinge (concealed) |
| Installation Options | Floor mounted / Roof mounted |
| Cable Management | Cable entry/exit from the bottom of the cabinet |
| Maintenance Access | Front maintenance via single front door |
| Parameter | Specification |
| Type | Optional AC air conditioner |
| Cooling Capacity | 1500 W |
| Input Voltage | 220 VAC, 50 Hz |
